Blue Sea Systems

Blue Sea 8059 AC 8 Position Toggle Circuit Breaker Panel [8059]

Blue Sea 8059 AC 8 Position Toggle Circuit Breaker Panel [8059]

Regular price $227.00 USD
Regular price $330.94 USD Sale price $227.00 USD
Sale Sold out
Shipping calculated at checkout.

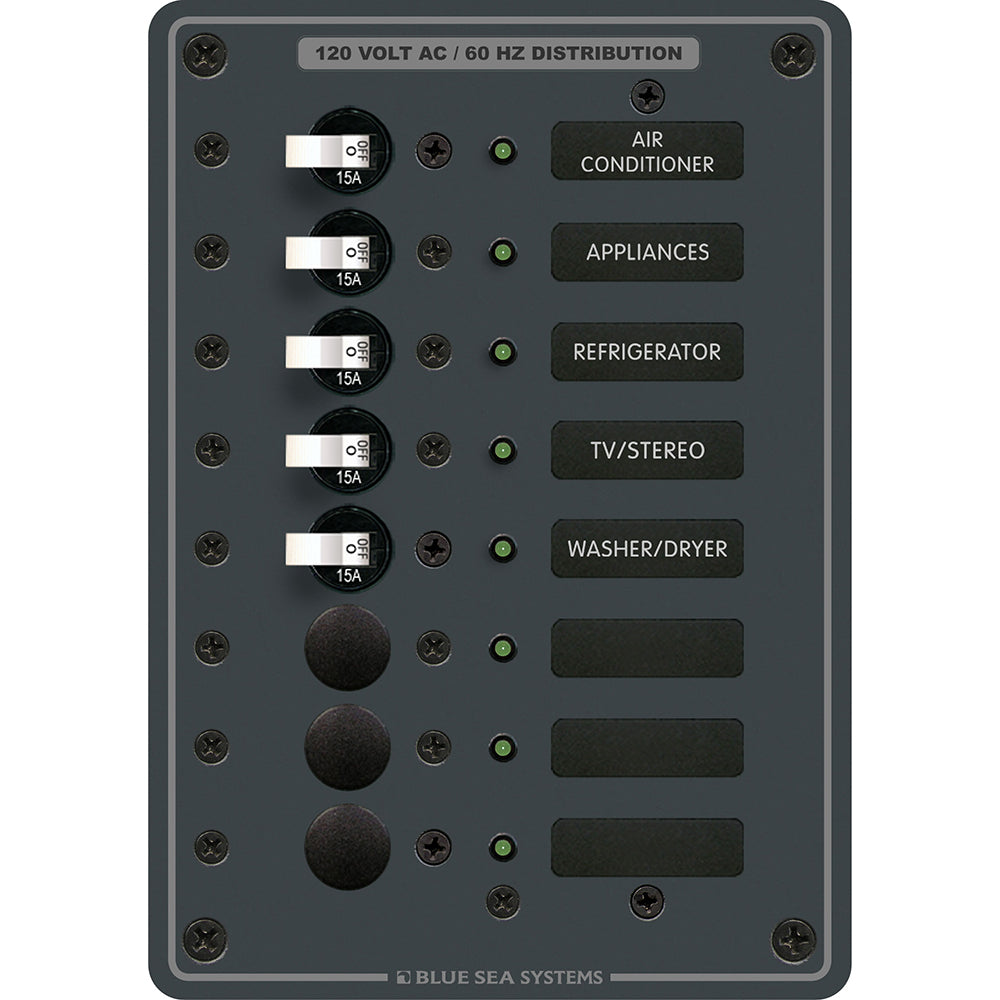

8059 AC 8 Position Toggle Circuit Breaker Panel

Features:

  • All hot, neutral, and safety ground buses installed, fully pre-wired
  • All circuit label positions are backlit on standard panels - No kit required
  • "ON" indicating LEDs installed in all circuit posistions
  • Maximum panel amperage - 100 Amperes

Specifications:

  • Positions: 8
  • Nominal Voltage: 120v AC
  • Maximum Amperage: 100A
  • Height: 7.5"
  • Width: 5.25"

Included:

  • (5) 7210 A-Series White Toggle Circuit Breaker - Single Pole 15A
  • (1) 8031 Basic AC Panel Label Set - 30 Labels
  • (8) 8034 LED - 120v AC Green

WarningWARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

  • AC/DC: AC
  • Max Breaker Quantity: 8
  • Voltage: 120v
  • Box Dimensions: 5"H x 7"W x 12"L WT: 2 lbs
  • UPC: 632085080594

Owner's Manual (pdf)
