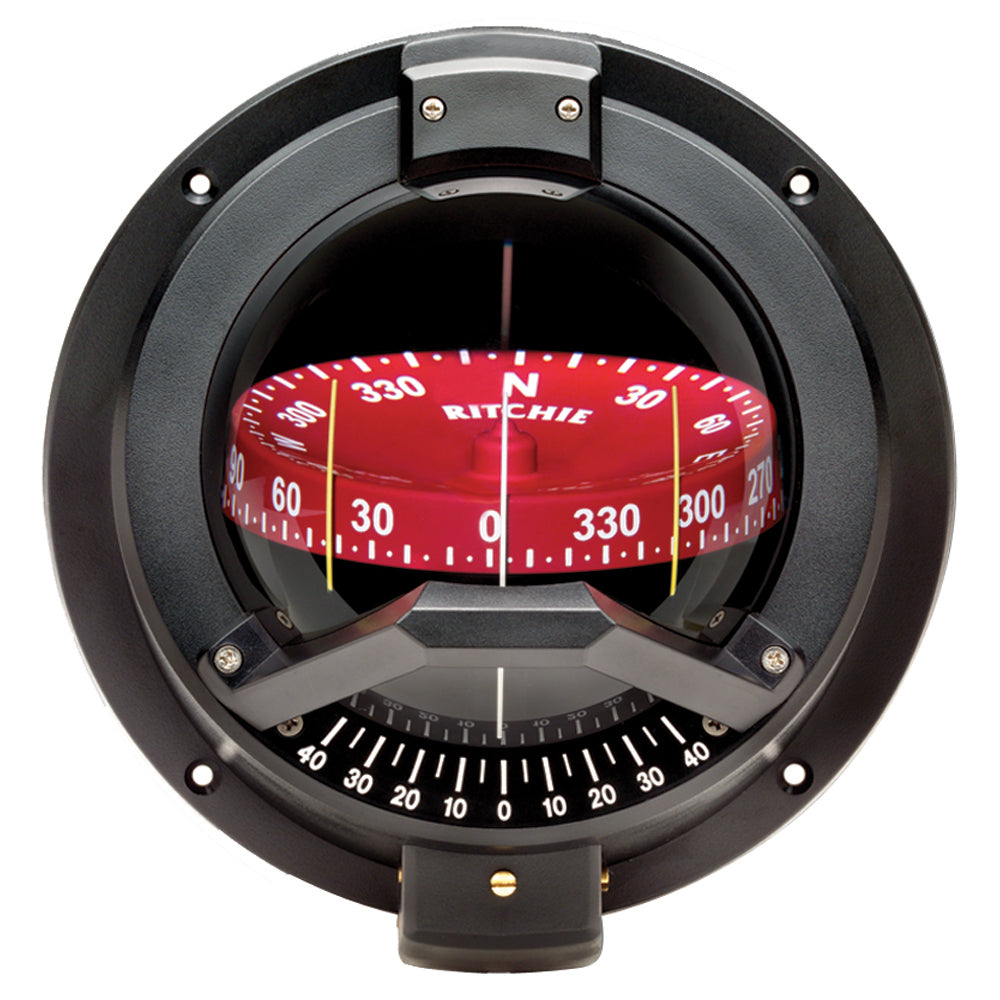

Ritchie BN-202 Navigator Compass - Bulkhead Mount - Black [BN-202]

Ritchie BN-202 Navigator Compass - Bulkhead Mount - Black [BN-202]

Regular price $495.00 USD
Regular price $501.46 USD Sale price $495.00 USD
Sale Sold out
Shipping calculated at checkout.

Navigator Compass

Features:

  • 4 1/2″ (115 mm) Ritchie CombiDial and Built-in Inclinometer
  • When mounting this Compass to a bulkhead that is NOT perpendicular (90° angle) to the center-line of the boat and/or NOT vertical (90° angle) to the waterline of the boat (boat on level keel), a fairing block MUST be used to make the compass so.

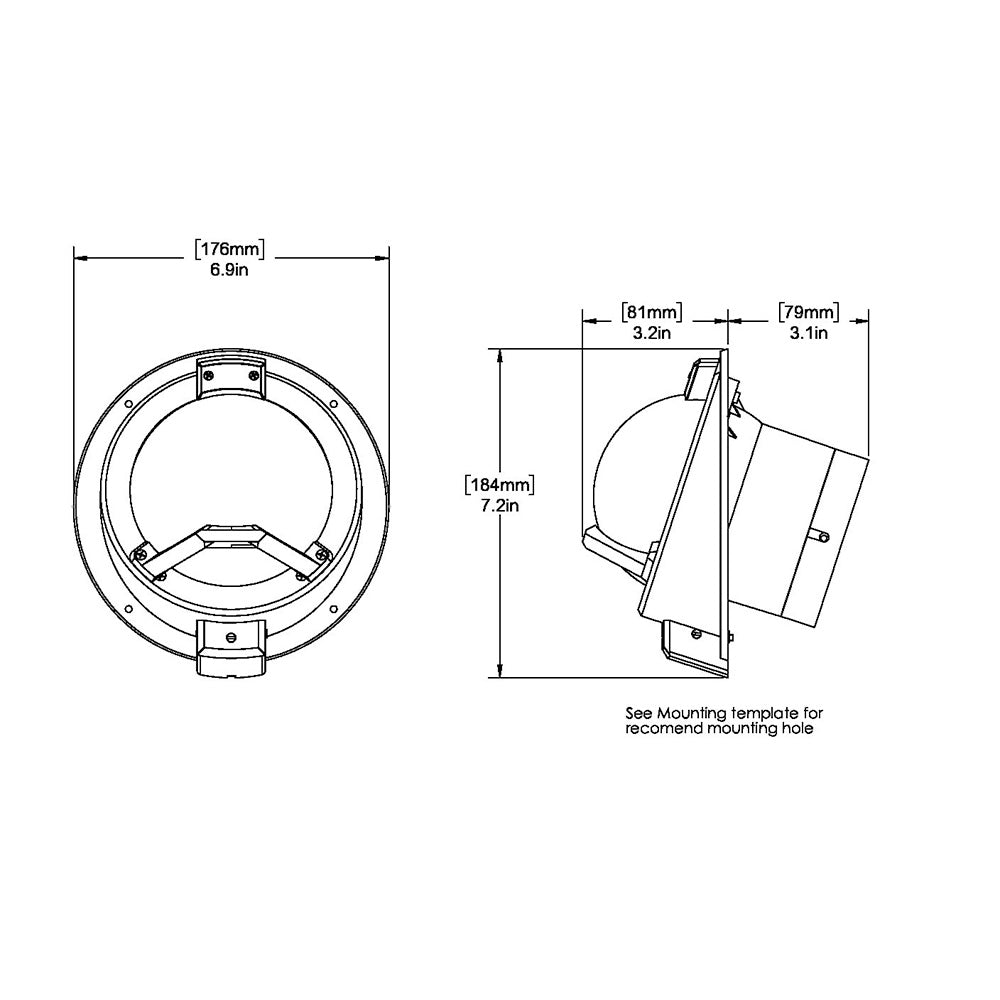

  • Easily Installed, Fits 5.75″ (146 mm) Mounting Hole
  • Internal Gimbal Systems for Maximum Stability During Adverse Pitch and Roll Conditions
  • Scientifically Matched Sapphire Jewel and Hardened Steel Pivot Dial Movement
  • Fiberglass Reinforced Bowl
  • 45 degree Lubber Lines
  • Exclusive Built-in 12v Amber LED Lighting
  • Built-in Compensators to Easily Adjust for Deviation
  • 100% Repairable
  • Exclusive 5-Year Ritchie Warranty

Approx. Shipping Weight: 2 lbs 5 oz (1.05 kg)

Notes:

12v lighting standard - 24 & 32v lighting options are available.

Specifications:

  • Mounting Style: Bulkhead
  • Lubber Lines: Yes
  • Read: Both
  • Backlight: Yes
  • Box Dimensions: 7"H x 7"W x 8"L WT: 2.8 lbs
  • UPC: 010342150301
