Samlex 80A Battery Charger - 12V - 2-Bank - 3-Stage w/Dip Switch Lugs - Includes Temp Sensor [SEC-1280UL]

Samlex 80A Battery Charger - 12V - 2-Bank - 3-Stage w/Dip Switch Lugs - Includes Temp Sensor [SEC-1280UL]

Regular price $726.70 USD
Regular price $908.40 USD Sale price $726.70 USD
Sale Sold out
Shipping calculated at checkout.

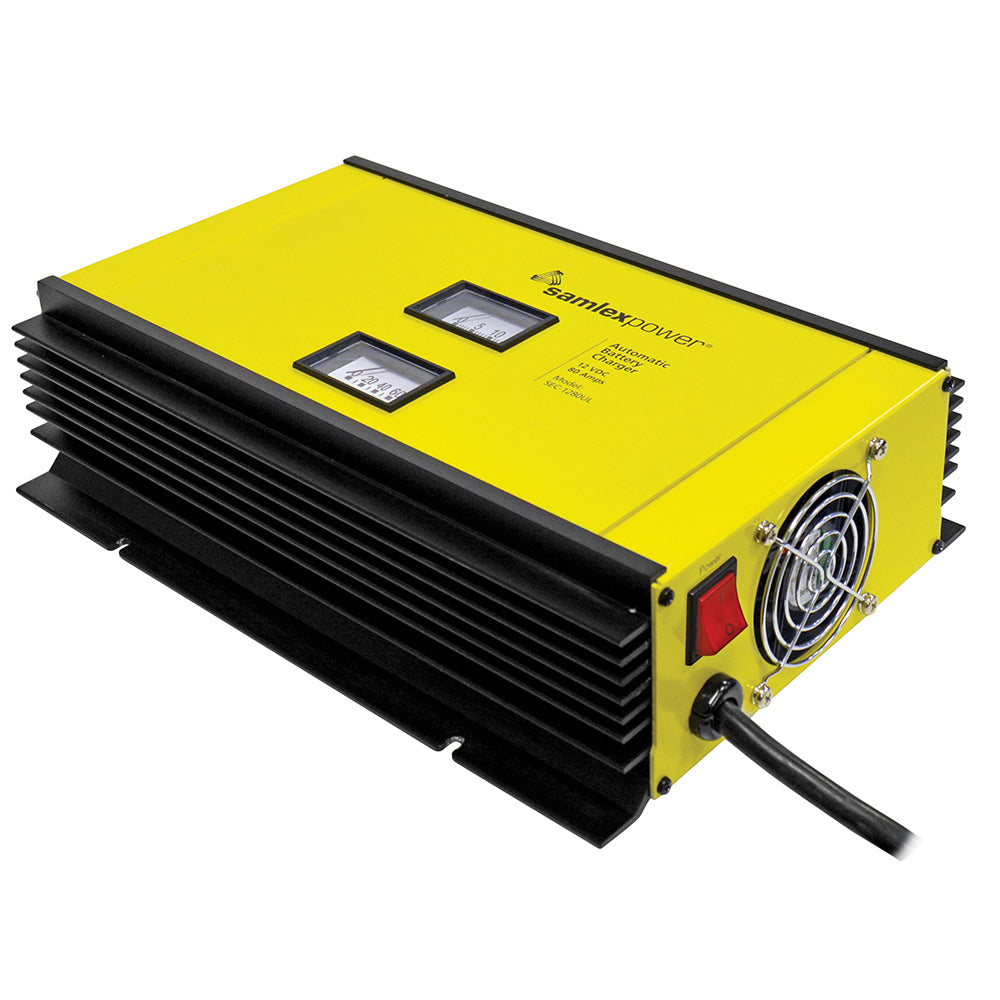

80A Battery Charger - 12V - 2-Bank - 3-Stage w/Dip Switch & Lugs - Includes Temp Sensor

This advanced fully automatic three-stage 80 Amp battery charger is ideal for charging all types of 12 Volt lead-acid batteries ( Flooded / Absorbed Glass Mat (AGM) / Gel Cell) from a 120 V, 60 Hz or 230 V, 50 Hz AC source. By means of a DIP switch setting, conversion to a two-stage algorithm is possible to charge batteries connected to a DC load (DC UPS). The unit can also be used as a DC Power Supply. Features include overload, short-circuit and over-temperature protection. The unit allows charging of up-to 2 separate battery banks.

Features:

  • Switch mode technology for high efficiency, lightweight and quiet operation
  • Automatic operation for ALL Lead Acid Batteries Flooded, AGM or Gel Cell
  • Can charge 2 banks of batteries simultaneously, no isolator necessary
  • Can be used as a power supply or DC UPS when used in conjunction with a battery
  • User Configurable AC Input voltage 120 or 230 VAC, 50 / 60 Hz
  • User Selectable ( by DIP Switch) for 2 or 3 stage, rapid and safe charging of standalone and loaded Lead Acid Batteries
  • “Half Power Mode” reduces maximum charging current to half the rated capacity, allows for safe charging of lower capacity batteries
  • Voltmeter and Ammeter for monitoring
  • Fan cooled based on output current
  • Protections: Short circuit, overload, reverse battery connection and over temperature
  • Includes temperature sensor to prevent under/overcharging of battery if temperature varies extensively

Specifications:

  • Input: 120 VAC 60 Hz or 230 VAC 50 Hz
  • Output: 12 VDC
  • Amps: 80
  • Remote Control: 900-RC
  • Weight: 9 (lbs)
  • Weight: 4.1 (kg)
  • Dimensions: 15 x 9.61 x 3.82 (in)
  • Dimensions: 381 x 244 x 97 (mm)
  • Safety: Listed to UL Standard UL-1564, EMI Compliant to FCC Part 15(B), Class B
  • Warranty: 2 Year Limited

Applications:

  • Automotive
  • Recreational vehicles
  • Marine
  • Communications sites
  • Battery back-up systems

WarningWARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

  • Charger Output Voltage: 12v
  • Charger Output - Amps: 80a
  • Charging Banks: 2
  • Portable: No
  • Charger Input - Voltage: 120/240v
  • Box Dimensions: 6"H x 11"W x 19"L WT: 14 lbs
  • UPC: 622988083044
